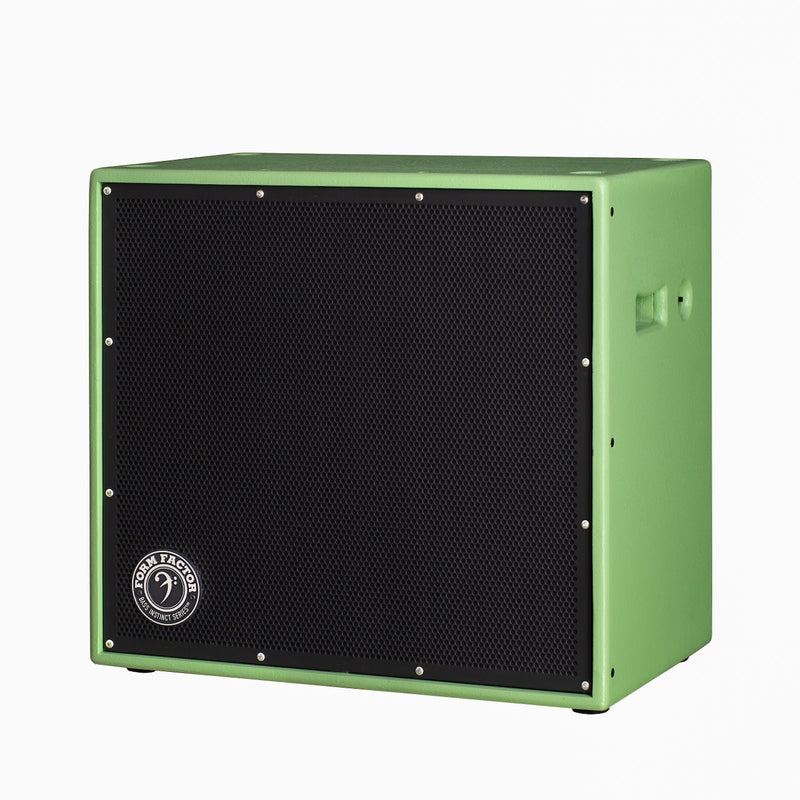

2B12LH — 2×12″ Lite Hybrid

Dual 12-Inch Lite Hybrid in a Wide-Format Chassis

The 2B12LH is a dual 12-inch cabinet engineered to combine the broad low-mid presence of a pair of 12-inch drivers with Form Factor Audio's Lite Hybrid construction methodology — a Light Hybrid Design chassis combining three different types of plywood. Designed and built in California, the 2B12LH delivers 600 watts RMS (1200W max) at 100 dB sensitivity through a 45 Hz–20 kHz bandwidth, in a wide-format cabinet engineered for stage presence and acoustic dispersion.

Trusted by touring bassists who value the broad low-mid presence of dual 12-inch drivers in a touring-ready chassis, the 2B12LH delivers full-range performance in standard Gig Armor™ Textured Black or one of two limited-series corporate finishes.

What it does

Two 12-inch neodymium-magnet woofers paired with a 1.46-inch annular tweeter, in a Light Hybrid Design cabinet combining three different types of plywood. 600 watts RMS handling, 1200 watts maximum. 100 dB sensitivity. 45 Hz–20 kHz response. Selectable 4-ohm or 8-ohm operation.

“The dual 12-inch configuration is one of the most musically versatile cabinet formats — broader low-mid presence than a 1×15, more articulate than a 4×10. The 2B12LH brings that voicing into the Lite Hybrid line, with a wide-format chassis that serves the acoustic dispersion two 12-inch drivers are designed for. Three plywood types working together, the 1.46-inch annular tweeter extending the top end naturally — every choice in the cabinet serves the engineering brief: deliver the 2×12 voicing in a chassis built to travel.” — Mike Lera, Head of Engineering & Design

Build & components

• Light Hybrid Design — three different types of plywood
• Two neodymium 12-inch woofers
• 1.46″ annular tweeter
• 18-AWG steel grill (powder coated black)
• Gig Armor™ Textured Black finish (standard touring)
• Limited-series corporate colors: Olive Green · Regatta Blue
• 2 × NL4 Speakon™ inputs
• Two side-mounted handles (1 per side)
• Made in California

In use

The 2B12LH is the cabinet for the bassist who values the broad acoustic dispersion of dual 12-inch drivers in a touring-ready chassis. Pair with a Bi500 Di Mark III for studio and theater work, or with a Bi1000 Di Mark III for full-stage configurations. The wide-format chassis dimensions make the 2B12LH especially well-suited for stage placements where horizontal projection matters.

Why working bassists choose the 2B12LH

• Dual 12-inch voicing — broad low-mid presence with wide acoustic dispersion
• 600W RMS (1200W max) handling at 35 pounds
• Light Hybrid Design with three plywood types
• 1.46″ annular tweeter for extended high-frequency response
• Wide-format chassis (29.4″ × 20.4″ × 13.4″) for stage projection
• Standard Gig Armor™ Textured Black, plus limited-series Olive Green / Regatta Blue
